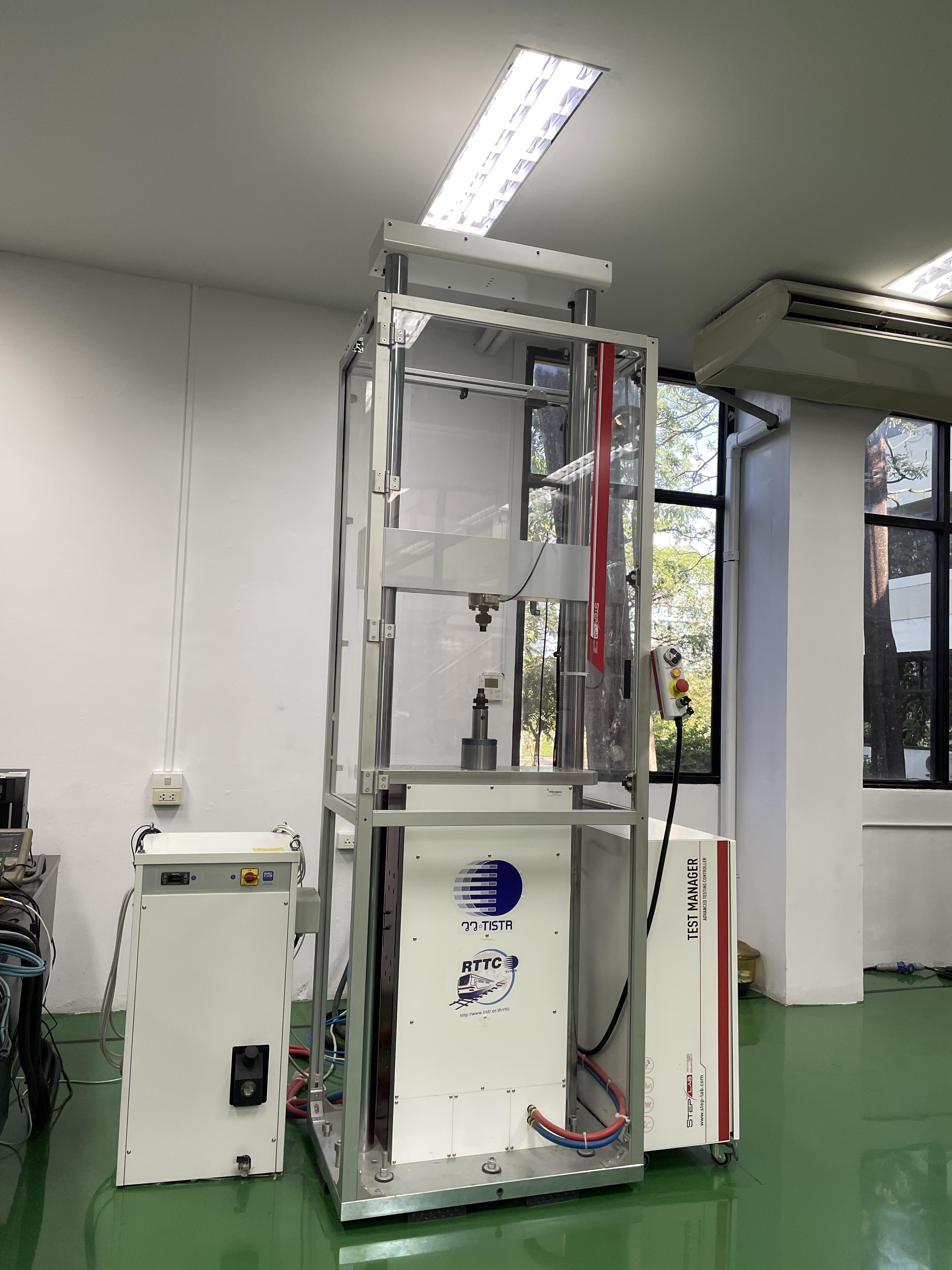

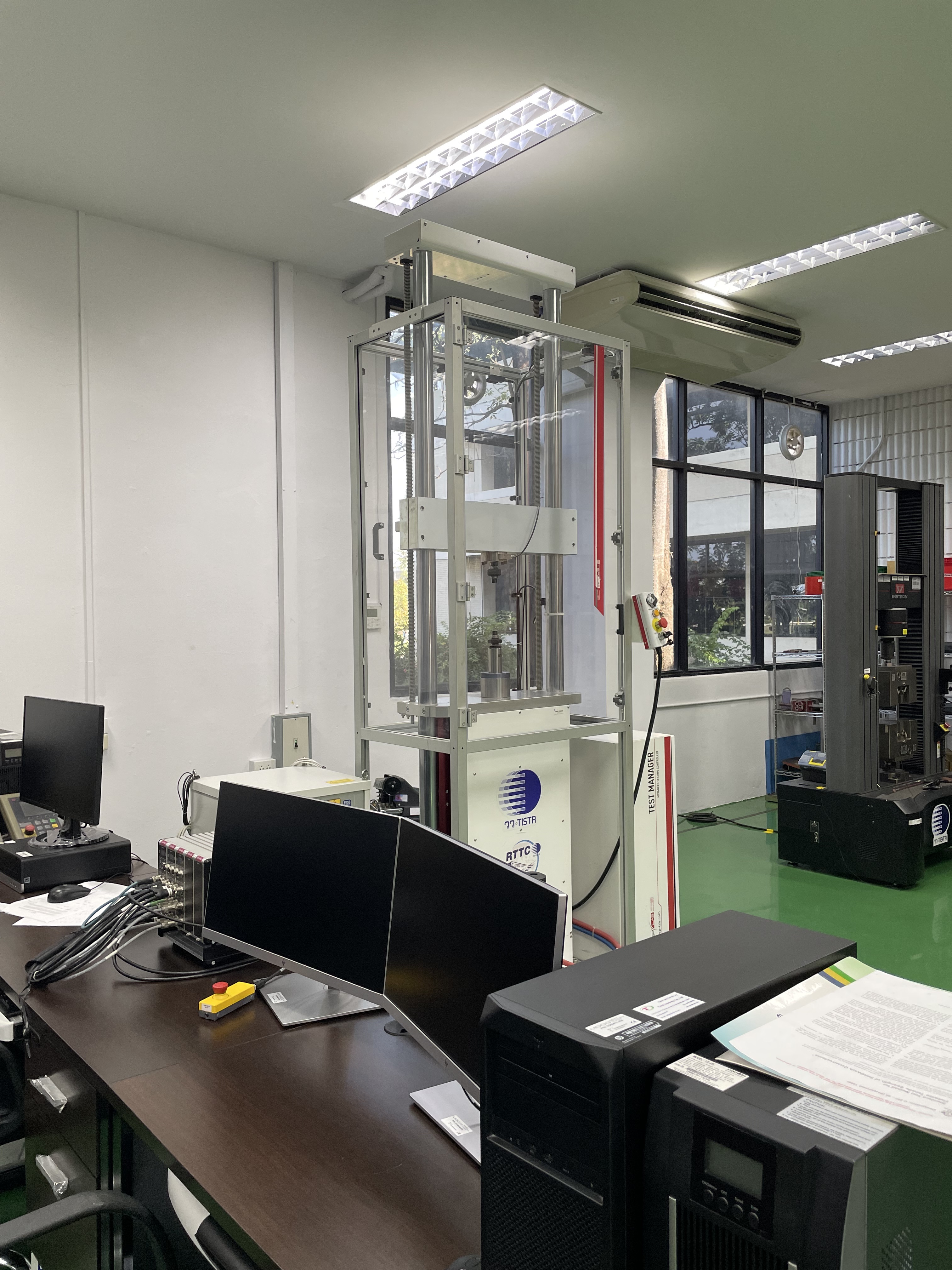

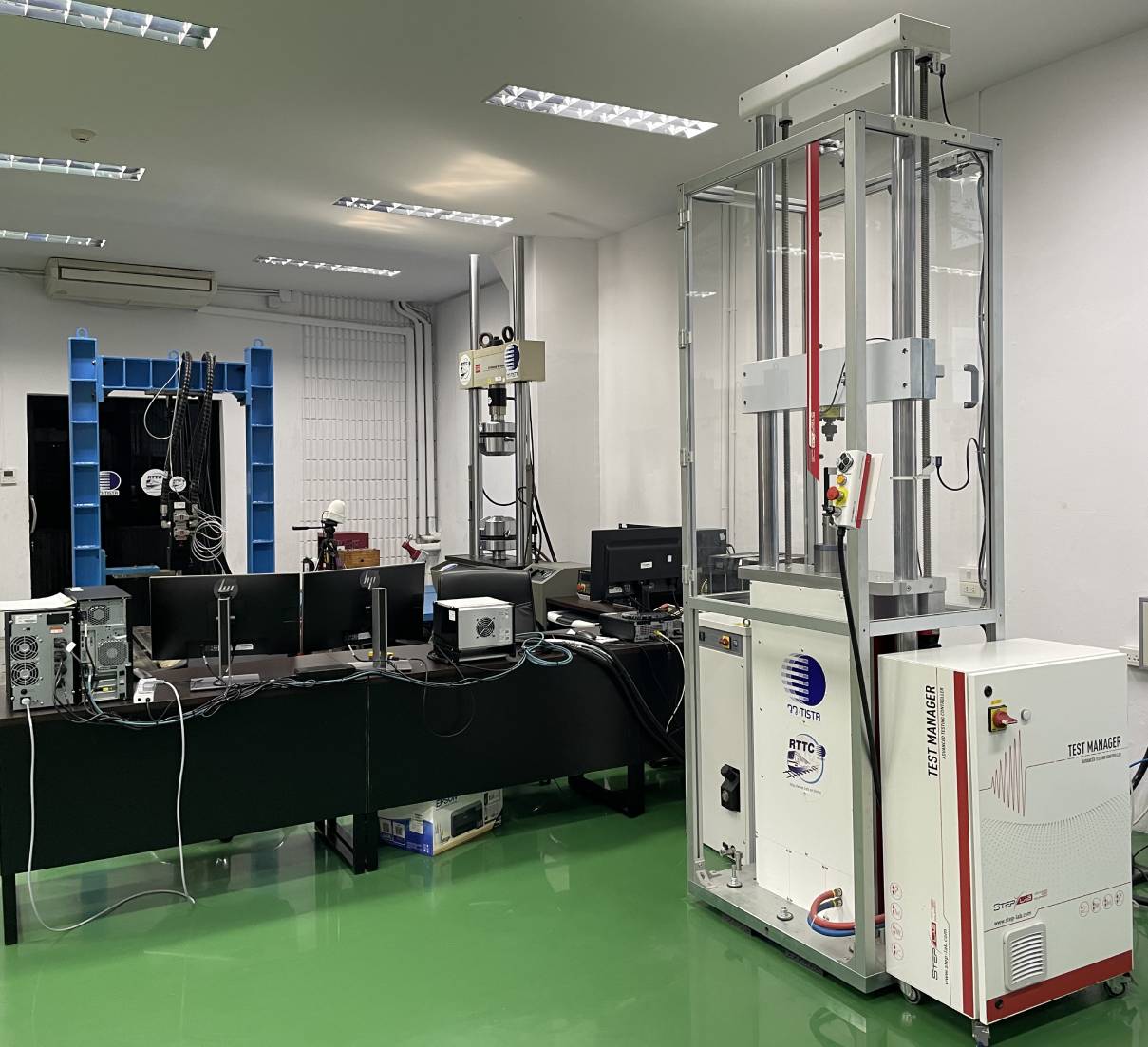

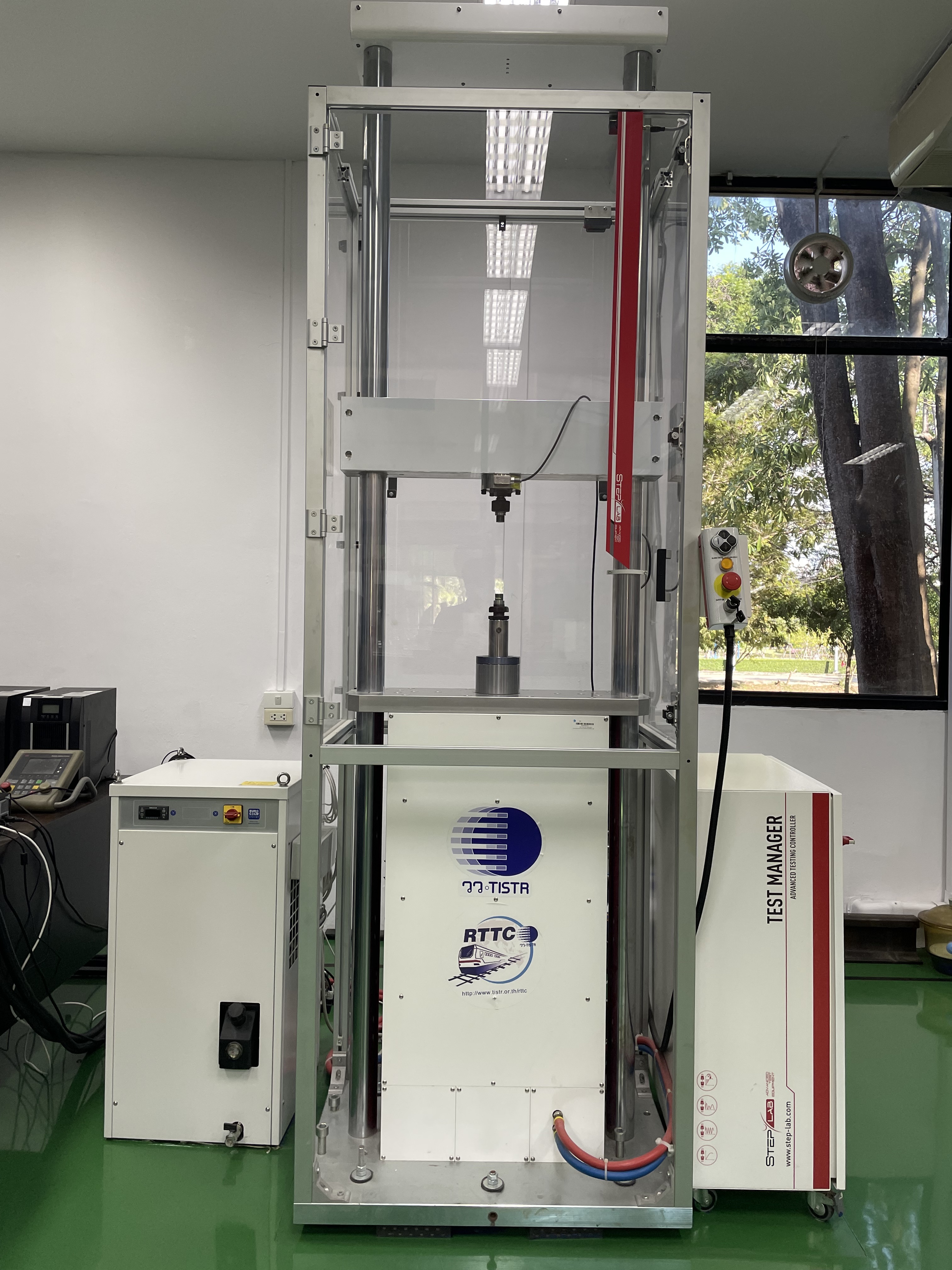

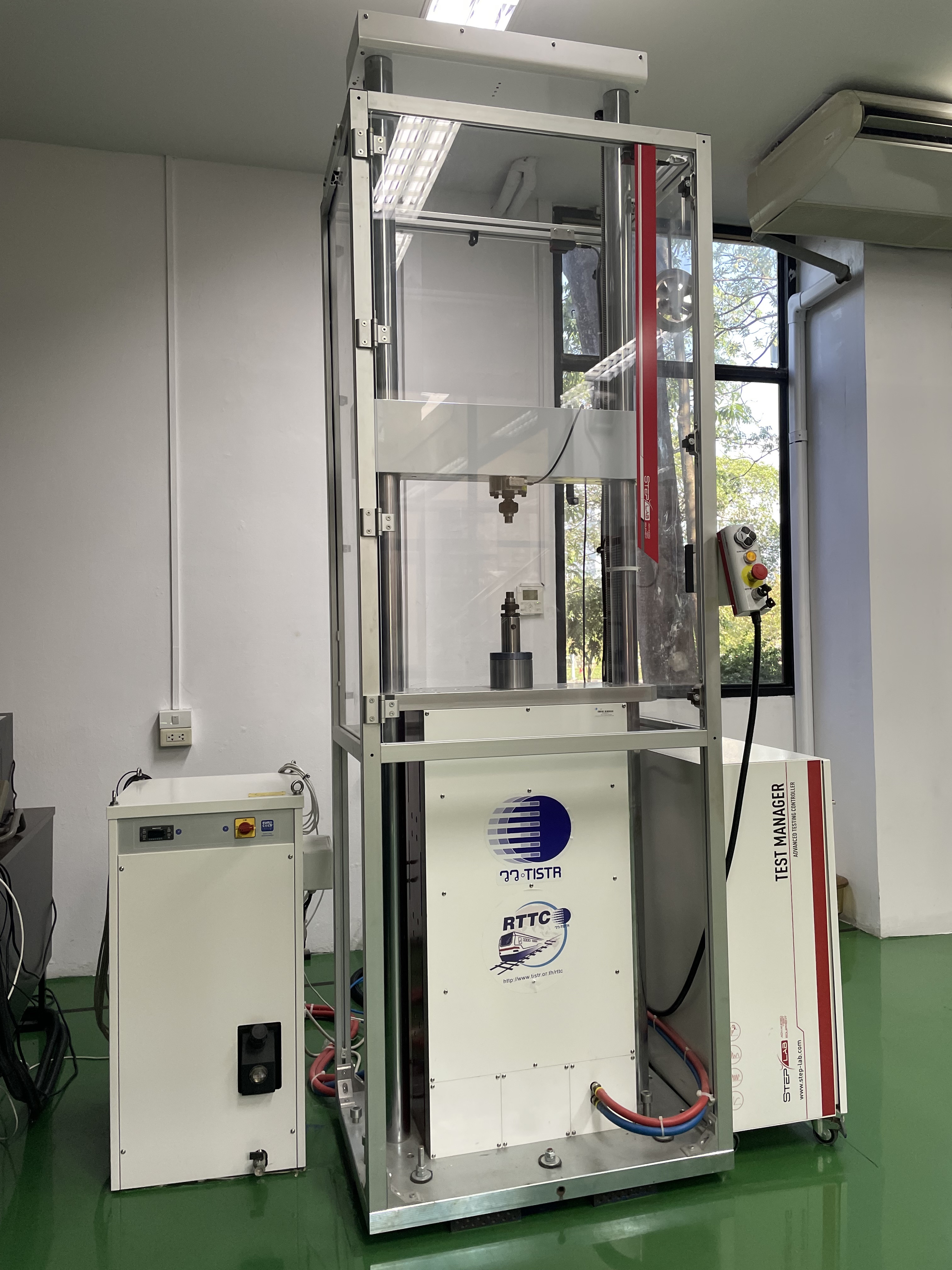

MATERIALS TESTING MACHINE
WITH ELECTRIC SYSTEM

It is a material testing machine for both metal and non-metal materials. Test material properties and welds e.g. welds of rail system components both road and vehicle parts, materials, rails, rail welds Rail joints, rail anchors, bogies, bogie parts and train chassis Capable of testing at speeds of up to 6,000 times/min (100 Hz). It can support both static and dynamic testing standards. such as ASTM E8, ASTM E9, ASTM D638, ASTEM A 370, ASTM E646

Feature:

1. Max dynamic force: 15 kN (at 1000 mm/s)
2. Max static force 10 kN
3. Stroke: 70mm
4. Max speed 1000mm/s
5. Max frequency 100 Hz
6. Max acceleration: 7G (25Hz +/- 2.75mm is guaranteed)
7. Peak acceleration for high speed tensile test: 12G (only for high speed tensile test). With this acceleration we reach 1000 mm/s in 4,2mm
8. Electric supply: 380V 3ph, 48 A
9. Weight: around 900kg
10. The upper plate movement is managed by the Test Center (automatic), the upper plate fixing is manual.
